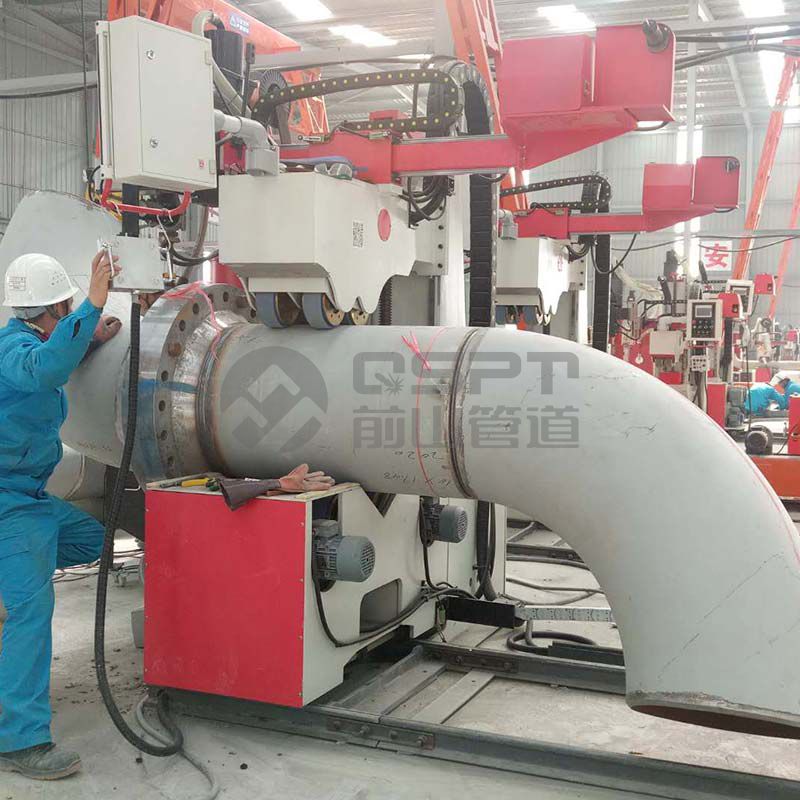

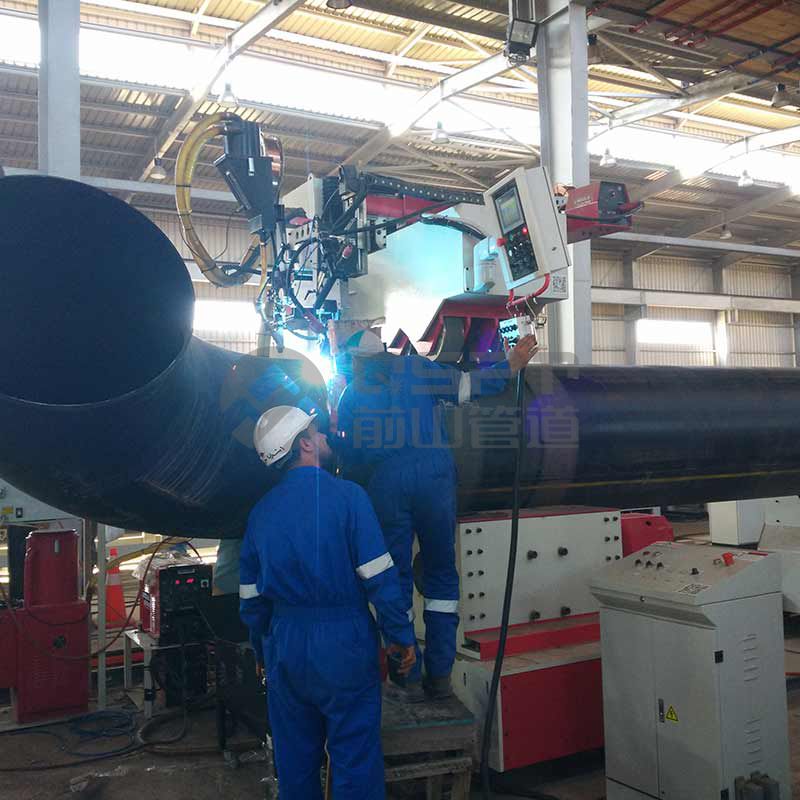

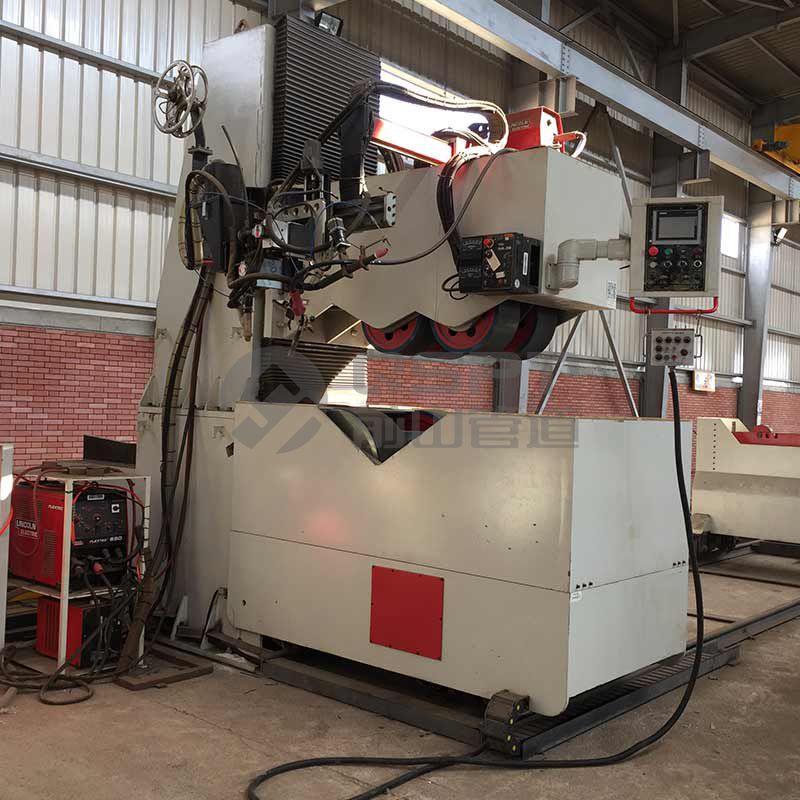

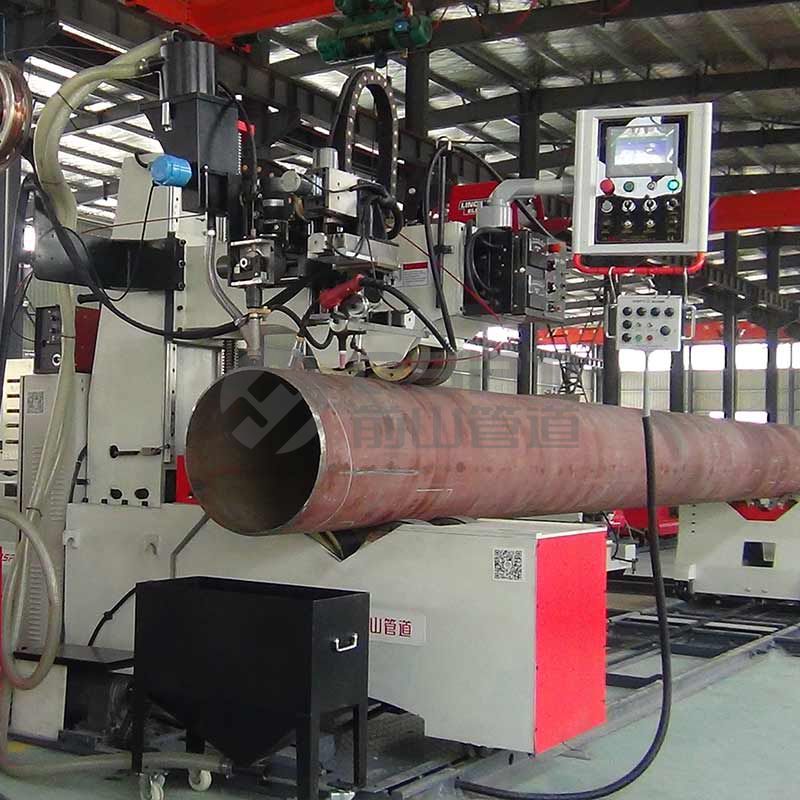

Split Type Pipe Automatic Welding Machine(Heavy DutyType)

Model: SPAWM-24Ab/32Ab/48Aa/64Aa

Pipe Diameter Applicable: DN400/DN600/DN800/DN1200/DN1600

Compartimiento:

Ventajas:

Performance Features: A patented product, The first choice for heavy wall thickness pipe fabrication production line, significantly increasingflow-process performance;separate welddriving system and column/boom system; weld driving system can move along the track; standard configuration: Lincoln Flextech650 multi-function welding power; TIG/MIG root welding with QSPT's root welding technology; TIG/MIG/SAW fill-in and cap welding;operation through a streamline welding control cabinet + an aluminum alloy wire control.


Original split design

Easier load and unload

Pipe automatic welding master

Rotator drive, rotator press down, telescopic boom welding

Super torque: 13200N.m

Standard configuration: Lincoln Flextech650

TIG/MIG/ SAW

Max. DN1600

Max. 60mm

Max. 600DI/D(MIG+ SAW)

Max. equivalent to 12 welders

Production line equipment

High efficiency and safety
