Pipe Fabrication Automatic Welding Center(Chuck + Chuck)

Product Model: PFFWC-16Ca/24Ca/32Ca/48Ca

Pipe Diameter Applicable: DN400/DN600/DN800/DN1200

Compartimiento:

Ventajas:

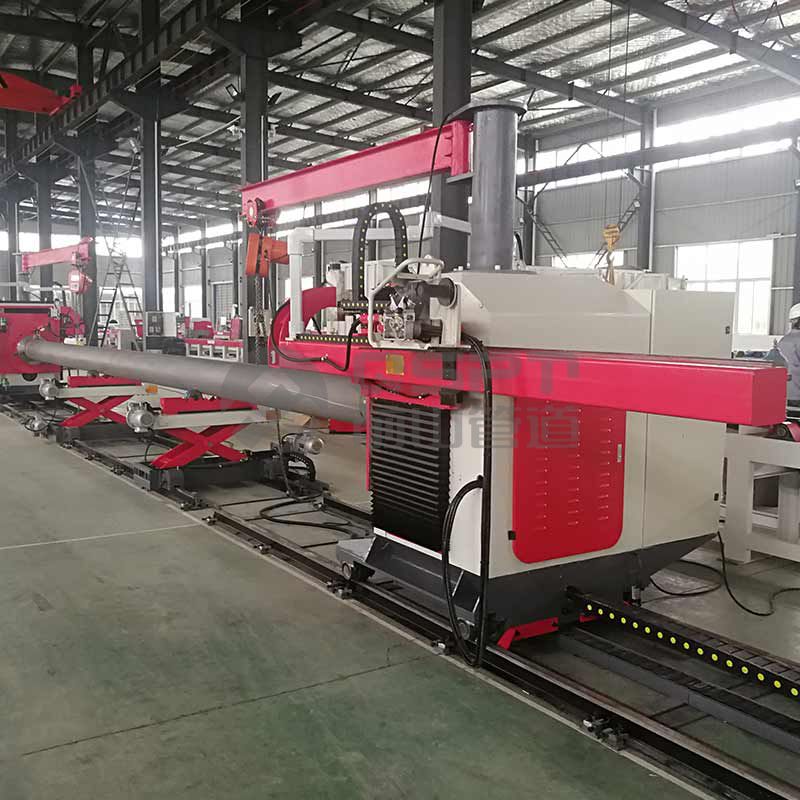

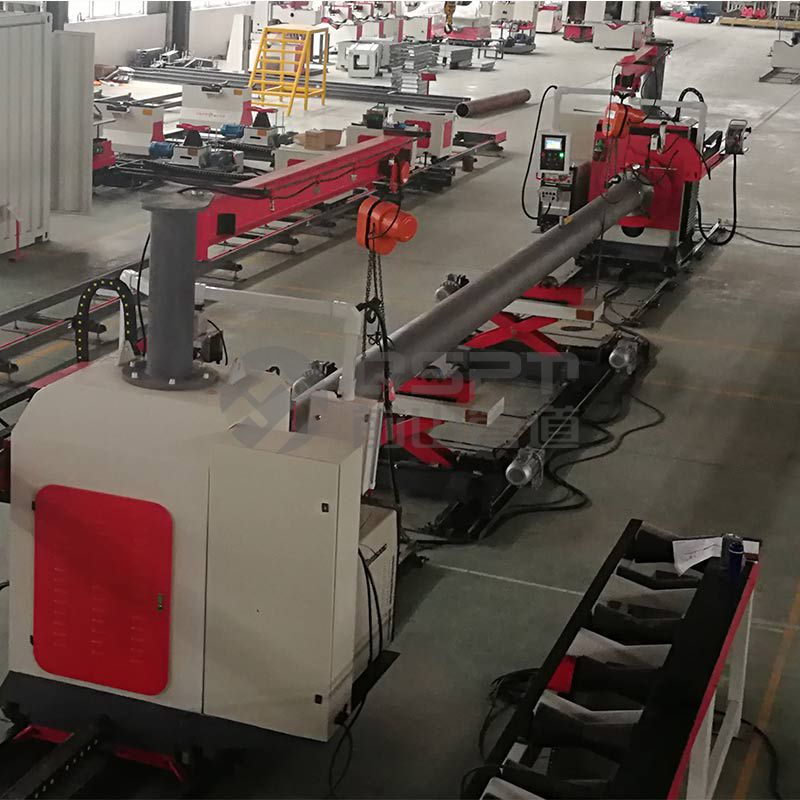

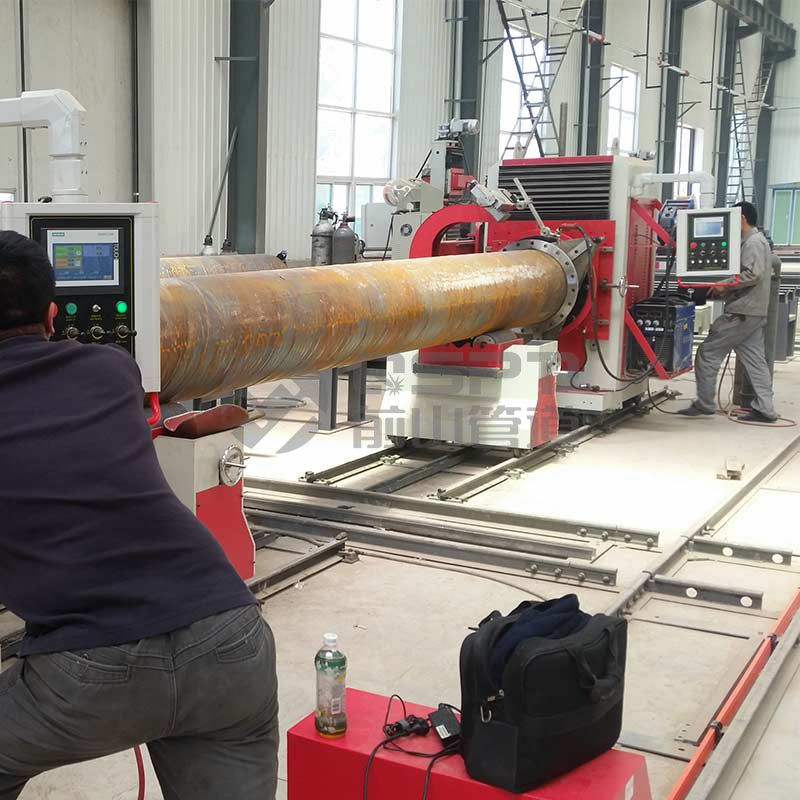

Performance features: Suitable for fittingup & welding spool pieces such as "flange + pipe + flange"; welding efficiency increased by more than 200%; two fixed type welding positioner with chuck; one telescopic boom for welding; one 15# machined rail;After finishing fitting up 2 weld joint at the same time, to start welding automatically simultaneously; standard configuration: 2 Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT's root welding technology; TIG/MIG/SAW fill-in and cap welding; operated with an aluminum alloy wire control box.


Simutaneous fitting-up & welding of two weld joints

Standard configuration: Lincoln Flextech500

TIG/MIG/ SAW

MAX. DN1200

MAX. 60mm

MAX. 800DI/D(MIG+SAW)
